Drill

  1. Drill

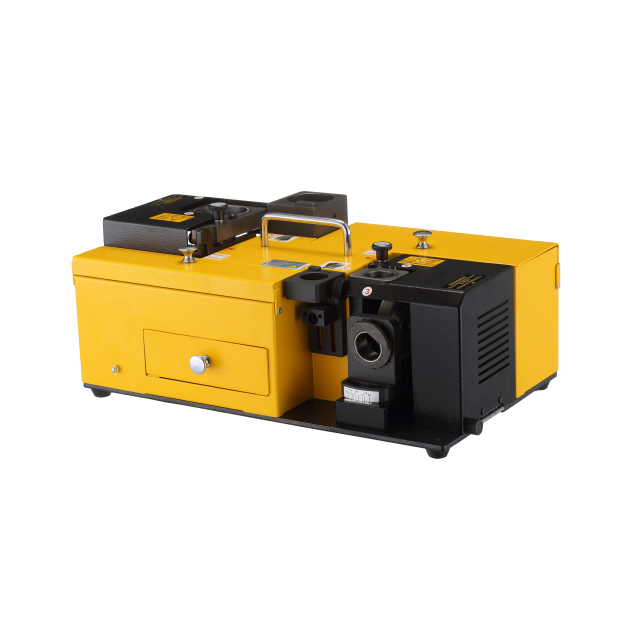

YN-09A Drill Grinder

YN-09A Drill Grinder

Size:2-32mm
Drill Tools: Twist Drill, Center Drill
NC drill
/
DETAIL
YN-09A
Drill Diameter : 2-32 mm
Cutting tool : Twist Drill, Center Drill, NC Spotting drill bits,Deep-slot drill bits
Sharpen Degree : 90°~140°
Standard Parts : Collet Holder ER20-2 flutes X 1set , Collet Holder ER40-2 flutes X 1set
                               Collet X 31 pcs
                               YN01BW CBN#100 for HSS material
Overall Dimension : 500 X 290 X 310 mm
Net Weight : 29 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Optional Parts:YN01BW-SD#100 for Carbide material
