Ball Nose End Mill

  1. Ball Nose End Mill

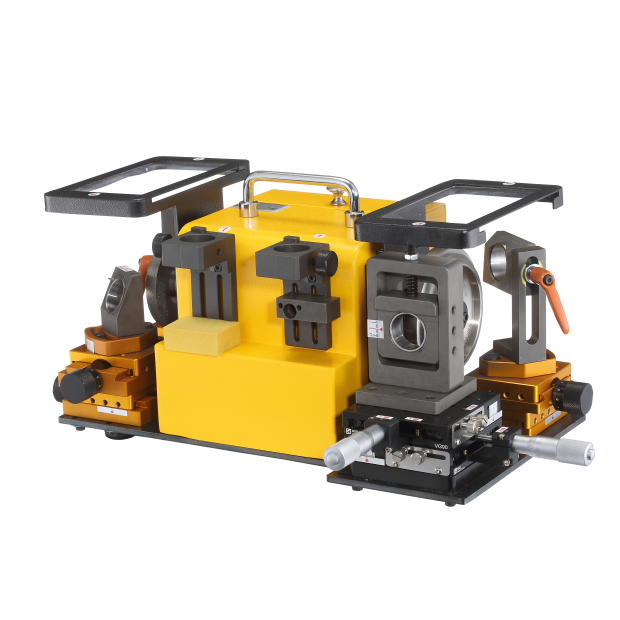

YN-08A Ball End Mill Grinder machine

YN-08A Ball End Mill Grinder machine

Ball Nose End Mill for 2 flutes
Tool size: 1.0R-2.5R
/
DETAIL
YN-08A
Ball Nose End Milll Grinder machine
Cutting tool : Ball Nose End Mill 2 flutes
Sharpen Diameter : 1.0/1.5/2.0/2.5R
Standard Parts : Collet Holder ER20-4 flutes X 1set
                               Collet X 4 pcs
                               YN010AW SD#140 for Carbide material ,YN08ARW SD#600 for Carbide material (The machine for one R angle wheel)
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Overall Dimension : 550 X 380 X 340 mm
Net Weight : 24 kgs
Optional Parts:YN10AW-CBN#140 for HSS material ,YN08ARW CBN#600 for HSS material
