End Mill

  1. End Mill

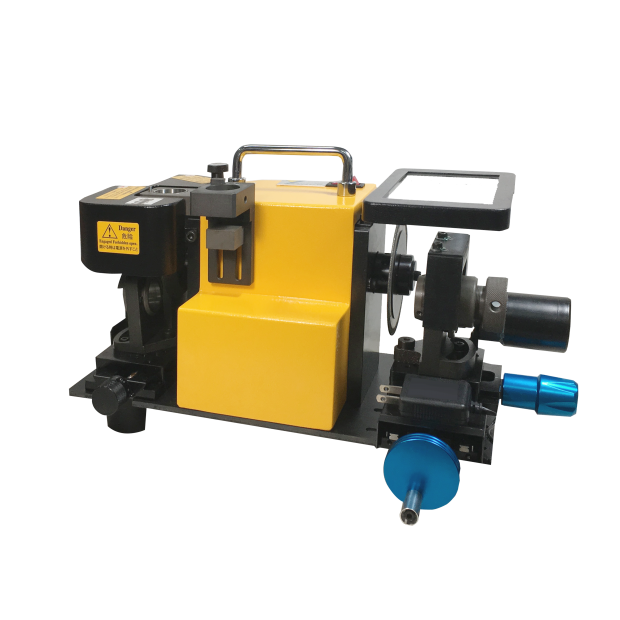

YN-03HMD End Mill Grinder + Semi-automatic Cutting

YN-03HMD End Mill Grinder + Semi-automatic Cutting

End Mill Tools: 2/3/4/6 flutes
Size:3-20 mm
Semi-automatic Cutting
/
DETAIL
YN-03MD
End Mill Diameter : 3-20mm
Cutting tool : 2/3/4/6 flute / unequal flute spacing end mill
Sharpen Degree : 0°~3°
Standard Parts : Collet Holder ER20-4 flutes X 1set ,Collet Holder ER20-6 flutes X 1set
                               Collet Holder ER25-4 flutes X 1set ,Collet Holder ER25-6 flutes X 1set
                              Collet X 10 pcs
                              YN03AW SD#140 for Carbide material . YN07HW SD80# for Carbide material
Overall Dimension : 550 X 380 X 340 mm
Net Weight : 17 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
