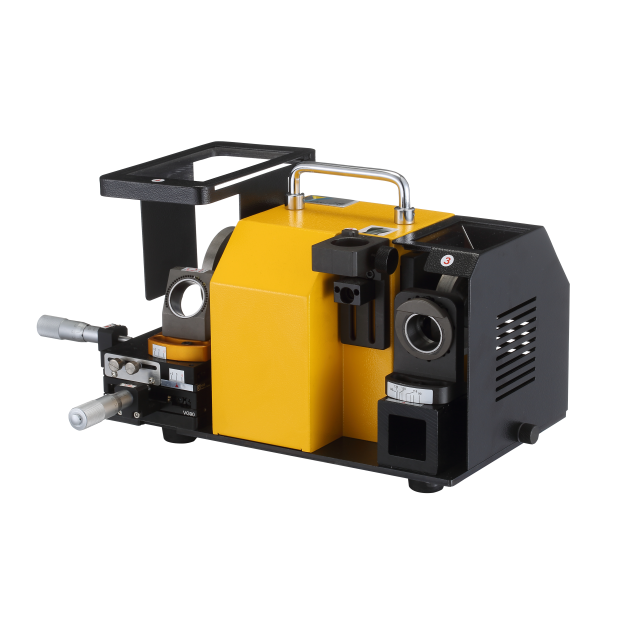

YN-01FD Drill Grinder

YN-01FD Drill Grinder

Size:1-4mm
Drill Tools: DG Drill,
/
DETAIL
YN-01FD
Drill Diameter : 1-4 mm
Cutting tool : DG Drill
Sharpen Degree : 90°~140°
Standard Parts : Collet Holder ER20-2 flutes X 1set
                               Collet X 4pcs
                               YN01AW CBN#140 for HSS material
                               YN10AW CBN#140 for HSS material
Overall Dimension : 420×340×360 mm
Net Weight : 15 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Optional Parts:YN01AW-SD#140 for Carbide material.YN10AW-SD#140 for Carbide material
