Drill

  1. Drill

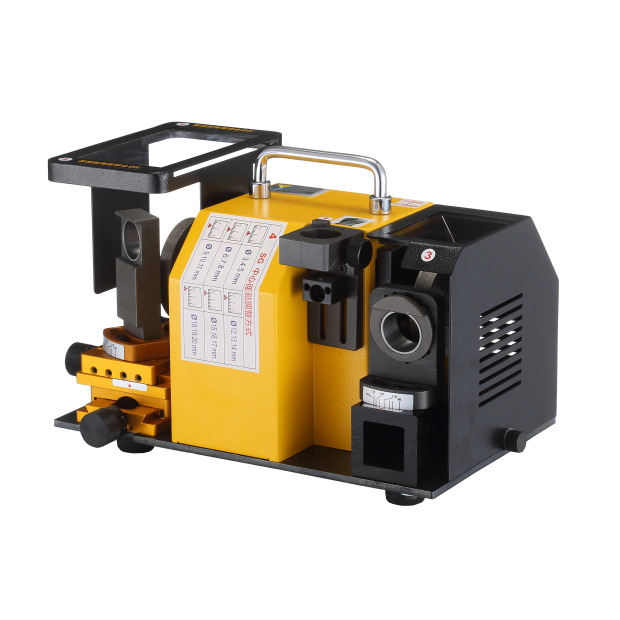

YN-01H+ Drill Grinder

YN-01H+ Drill Grinder

Size:2-20mm
Drill Tools: DG Drill, SG Drill, Center Drill, NC Spotting drill bits
/
DETAIL
YN-01H+
Drill Diameter : 2-20 mm
Cutting tool : DG Drill,SG Drill, Center Drill, NC Spotting drill bits,Deep-slot drill bits
Sharpen Degree : 90°~140°
Standard Parts : Collet Holder ER20-2 flutes X 1set . Collet Holder ER25-2 flutes X 1set
                               Collet X 29 pcs
                              YN01AW CBN#140 for HSS material
                              YN10AW CBN#140 for HSS material
Overall Dimension : 420×340×360 mm
Net Weight : 15 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Optional Parts:YN01AW-SD#140 for Carbide material.YN10AW-SD#140 for Carbide material
