YN-05H Drill&End Mill Grinder

YN-05H Drill&End Mill Grinder

Size:2-20mm (Drill) / 3-20mm (Mill)
Drill Tools: Twist Drill, Center Drill, NC Spotting drill bits
End Mill Tools: 2/3/4/6 flutes

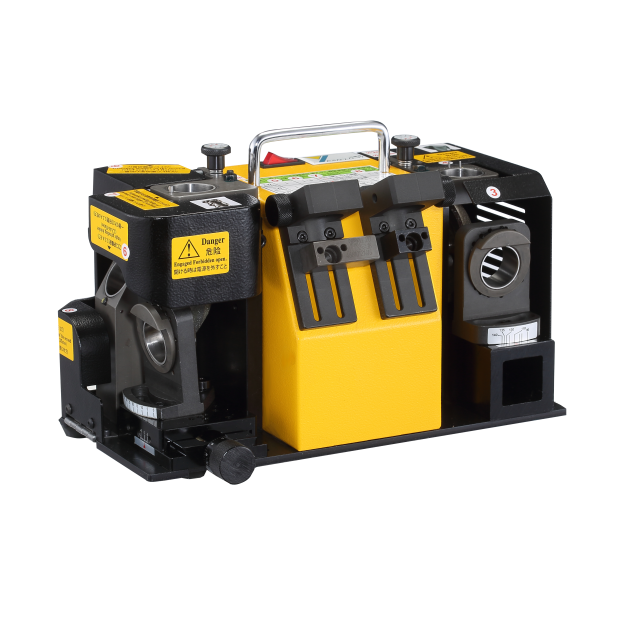

End MILL.png
/
DETAIL
YN-05H
Drill&End Mill Grinder machine :2-20mm (Drill) / 3-20mm (Mill)
Cutting tool : Twist Drill, Center Drill, NC Spotting drill bits , End Mill 2/3/4/6 flute
Drill Sharpen Degree : 90°~140°
Mill Sharpen Degree : 0°~3°
Standard Parts : Collet Holder ER20-2 flutes X 1set  ,ER25-2 flutes X 1set
                               Collet Holder ER20-4 flutes X 1set ,Collet Holder ER20-6 flutes X 1set
                               Collet Holder ER25-4 flutes X 1set ,Collet Holder ER25-6 flutes X 1set
                               Collet X 19 pcs
                               YN01HW CBN#140 for HSS material ,YN03AW SD#140 for Carbide material
Overall Dimension : 330 X 175 X 208 mm
Net Weight : 20 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Optional Parts:YN01HW-SD#140 for Carbide material ,YN03AW CBN#140 for HSS material
