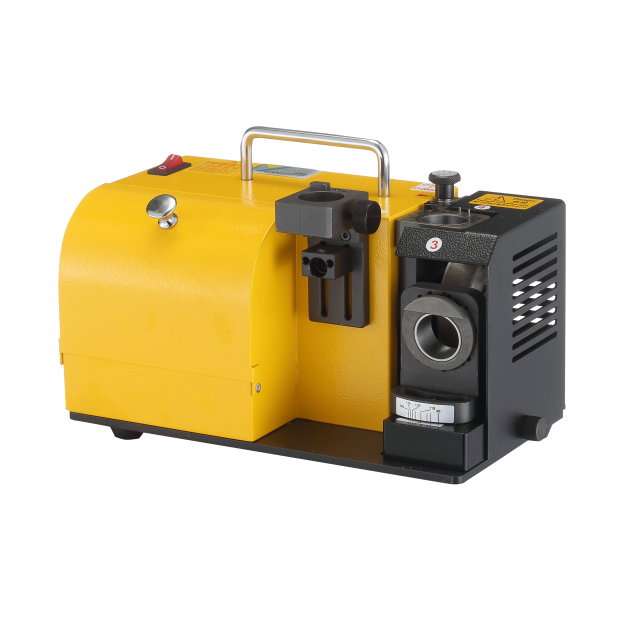

YN-01H Drill Grinder

YN-01H Drill Grinder

Size:2-20mm
Drill Tools: Twist Drill, Center Drill, NC Spotting drill bits
/
DETAIL
YN-01H
Drill Diameter : 2-20 mm
Cutting tool : Twist Drill, Center Drill, NC Spotting drill bits,Deep-slot drill bits
Sharpen Degree : 60°~140°/90°~140°
Standard Parts : Collet Holder ER20-2 flutes X 1set .Collet Holder ER25-2 flutes X 1 set
                               Collet X 19 pcs
                               YN01HW CBN#140 for HSS material
Overall Dimension : 330 X 210 X 260 mm
Net Weight : 8 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
Optional Parts:YN01HW-SD#140 for Carbide material
