End Mill

  1. End Mill

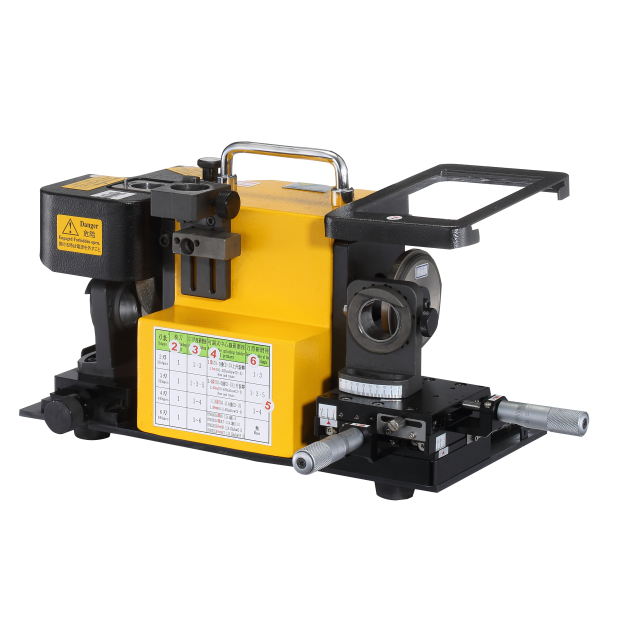

YN-03E End Mill Grinder + Radius Corner Angle

YN-03E End Mill Grinder + Radius Corner Angle

End Mill Tools: 2/3/4/6 flutes
Size:3-12 mm
End Mill
/
DETAIL
YN-03E
End Mill Diameter : 3-12mm
Cutting tool : 2/3/4/6 flute
Sharpen Degree : 0°~3°
Standard Parts : Collet Holder ER20-4 flutes X 1set ,Collet Holder ER20-6 flutes X 1set
                              Collet X 5 pcs
                              YN03AW SD#140 for Carbide material , YN03EWR SD#600 for Carbide material
Overall Dimension : 550 X 380 X 340 mm
Net Weight : 20 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
