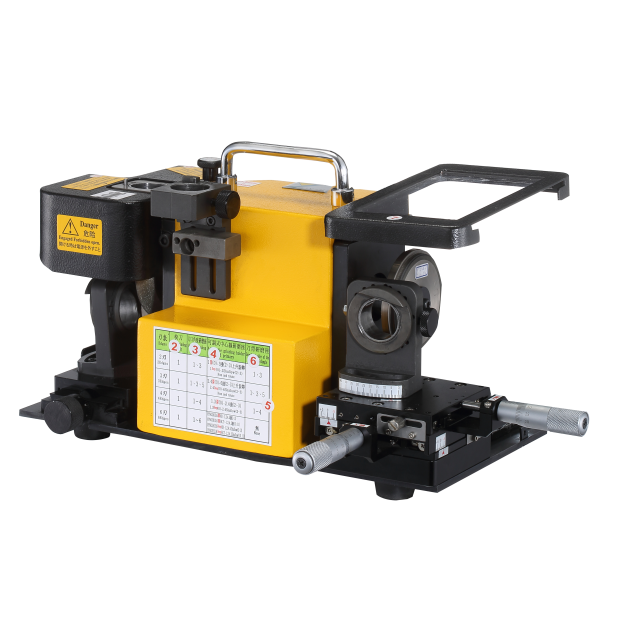

YN-03E End Mill Grinder + Radius Corner Angle

YN-03E End Mill Grinder + Radius Corner Angle

End Mill Tools: 2/3/4/6 flutes
Size:3-20 mm
/
DETAIL
YN-03E
End Mill Diameter : 3-20mm
Cutting tool : 2/3/4/6 flute
Sharpen Degree : 0°~3°
Standard Parts : Collet Holder ER20-4 flutes X 1set ,Collet Holder ER20-6 flutes X 1set
                               Collet Holder ER25-4 flutes X 1set ,Collet Holder ER25-6 flutes X 1set
                                Collet X 9 pcs
                                YN03AW SD#140 for Carbide material , YN03EWR SD#600 for Carbide material
Overall Dimension : 550 X 380 X 340 mm
Net Weight : 22 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
