End Mill

  1. End Mill

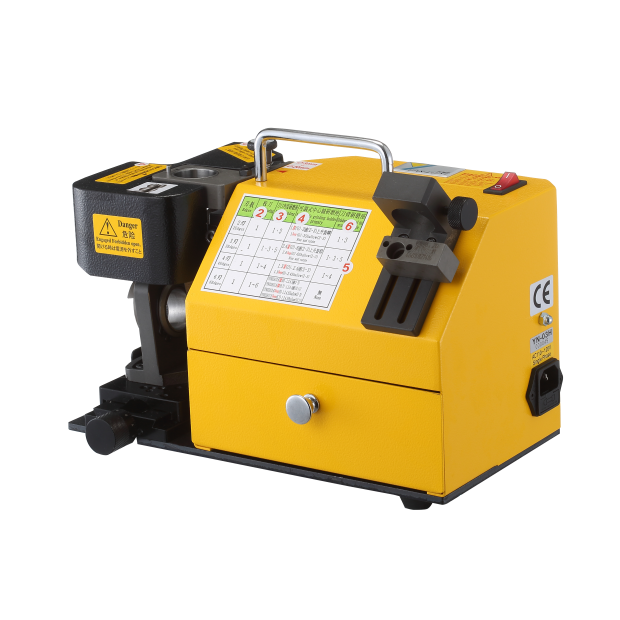

YN-03B End Mill Grinding Machine

YN-03B End Mill Grinding Machine

End Mill Tools: 2/3/4/6 flutes
Size:13-32mm
endmill
/
DETAIL
YN-03B
End Mill Diameter : 13-32mm
Cutting tool : 2/3/4/6 flute
Sharpen Degree : 0°~3°
Standard Parts : Collet Holder ER40-4 flutes X 1set ,Collet Holder ER40-6 flutes X 1set
                              Collet X 9 pcs
                              YN03BW SD#140 for Carbide material
Overall Dimension : 350X250X275 mm
Net Weight : 23 kgs
Power Supply :  AC 110V 50HZ / AC 220V 50HZ
Motor Speed : 5500 ± 5% R.P.M
